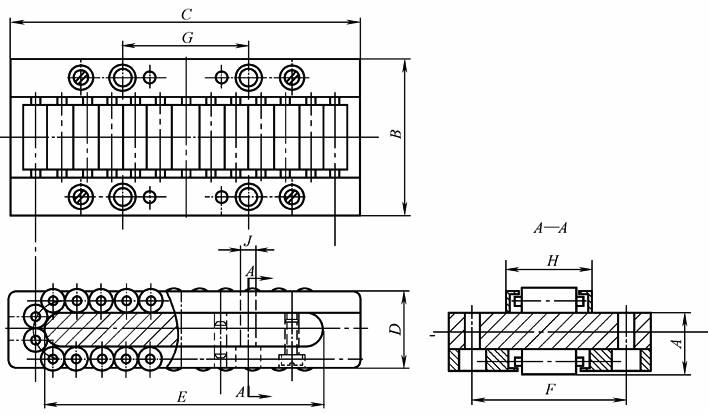

履带式(C型)滚动导轨块结构、外形及基本尺寸

型号

主要尺寸/mm

额定载荷/kN

A

B

C

D

E

F±0.1

G±0.1

H

J

动载荷C

静载荷C₀

HJG-K3475C

12.7

34

75

18.7

57

27.7

27

23.7

f 3

33

36

HJG-K47104C

20

47

104

28

85

39

38

30

f 5

68

88.5

HJG-K64140C

27

64

140

37

115

49

51

37

f 5.5

110

140
