基础尺寸m=2_渐开线花键轴连接.啮合角30°(DIN5480-2:2006-05)_德国(DIN)花键_花键连接_销、键和花键连接_连接与紧固

基础尺寸 m＝2mm

基础尺寸 m＝2mm 单位：mm

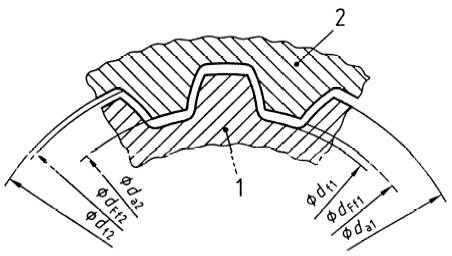

基准直径	齿数	节圆直径	基圆直径	变位量	齿槽齿厚	内花键直径				外花键直径
基准直径	齿数	节圆直径	基圆直径	变位量	齿槽齿厚	齿根圆直径	齿根圆直径偏差	齿根成形圆直径	顶圆直径	顶圆直径	齿根成形圆直径	齿根圆直径	齿根圆直径偏差
d_B	z	d	d_b	x₁·m	e₂＝s₁	d_f2	A_df2	d_Ff2 min.	d_a2	d_a1	d_Ff1 max.	d_f1	A_df1
15	6	12	10.392	0.4	3.603	15	0.51	14.66	11	14.6	10.94	10.60	-0.79
16	6	12	10.392	0.9	4.181	16	0.51	15.66	12	15.6	11.94	11.60	-0.79
17	7	14	12.124	0.4	3.603	17	0.51	16.66	13	16.6	12.94	12.60	-0.79
18	7	14	12.124	0.9	4.181	18	0.51	17.66	14	17.6	13.94	13.60	-0.79
20	8	16	13.856	0.9	4.181	20	0.51	19.66	16	19.6	15.94	15.60	-0.79
22	9	18	15.588	0.9	4.181	22	0.51	21.66	18	21.6	17.94	17.60	-0.79
25	11	22	19.053	0.4	3.603	25	0.51	24.66	21	24.6	20.94	20.60	-0.79
28	12	24	20.785	0.9	4.181	28	0.52	27.67	24	27.6	23.93	23.60	-0.83
30	13	26	22.517	0.9	4.181	30	0.52	29.67	26	29.6	25.93	25.60	-0.83
30	14^a	28	24.249	-0.1	3.026	30	0.52	29.67	26	29.6	25.93	25.60	-0.83
32	14	28	24.249	0.9	4.181	32	0.52	31.67	28	31.6	27.93	27.60	-0.83
35	16	32	27.713	0.4	3.603	35	0.52	34.67	31	34.6	30.93	30.60	-0.83
37	17	34	29.445	0.4	3.603	37	0.52	36.67	33	36.6	32.93	32.60	-0.83
38	18^a	36	31.177	-0.1	3.026	38	0.52	37.67	34	37.6	33.93	33.60	-0.83
40	18	36	31.177	0.9	4.181	40	0.52	39.67	36	39.6	35.93	35.60	-0.83
42	20^a	40	34.641	-0.1	3.026	42	0.52	41.67	38	41.6	37.93	37.60	-0.83
45	21	42	36.373	0.4	3.603	45	0.52	44.67	41	44.6	40.93	40.60	-0.83
47	22	44	38.105	0.4	3.603	47	0.52	46.67	43	46.6	42.93	42.60	-0.83
48	22	44	38.105	0.9	4.181	48	0.52	47.67	44	47.6	43.93	43.60	-0.83
50	24	48	41.569	-0.1	3.026	50	0.52	49.67	46	49.6	45.93	45.60	-0.83
52	24	48	41.569	0.9	4.181	52	0.54	51.68	48	51.6	47.92	47.60	-0.89
55	26	52	45.033	0.4	3.603	55	0.54	54.68	51	54.6	50.92	50.60	-0.89
58	28	56	48.497	-0.1	3.026	58	0.54	57.68	54	57.6	53.92	53.60	-0.89
60	28	56	48.497	0.9	4.181	60	0.54	59.68	56	59.6	55.92	55.60	-0.89
62	30	60	51.962	-0.1	3.026	62	0.54	61.68	58	61.6	57.92	57.60	-0.89
65	31	62	53.694	0.4	3.603	65	0.54	64.68	61	64.6	60.92	60.60	-0.89
68	32	64	55.426	0.9	4.181	68	0.54	67.68	64	67.6	63.92	63.60	-0.89
70	34	68	58.890	-0.1	3.026	70	0.54	69.68	66	69.6	65.92	65.60	-0.89
72	34	68	58.890	0.9	4.181	72	0.54	71.68	68	71.6	67.92	67.60	-0.89
75	36	72	62.354	0.4	3.603	75	0.54	74.68	71	74.6	70.92	70.60	-0.89
78	38	76	65.818	-0.1	3.026	78	0.54	77.68	74	77.6	73.92	73.60	-0.89
80	38	76	65.818	0.9	4.181	80	0.54	79.68	76	79.6	75.92	75.60	-0.89
82	40	80	69.282	-0.1	3.026	82	0.54	81.68	78	81.6	77.92	77.60	-0.89
85	41	82	71.014	0.4	3.603	85	0.54	84.68	81	84.6	80.92	80.60	-0.89
88	42	84	72.746	0.9	4.181	88	0.54	87.68	84	87.6	83.92	83.60	-0.89
90	44	88	76.210	-0.1	3.026	90	0.54	89.68	86	89.6	85.92	85.60	-0.89
92	44	88	76.210	0.9	4.181	92	0.54	91.68	88	91.6	87.92	87.60	-0.89
95	46	92	79.674	0.4	3.603	95	0.54	94.68	91	94.6	90.92	90.60	-0.89
98	48	96	83.138	-0.1	3.026	98	0.54	97.68	94	97.6	93.92	93.60	-0.89
100	48	96	83.138	0.9	4.181	100	0.54	99.68	96	99.6	95.92	95.60	-0.89
105	51	102	88.335	0.4	3.603	105	0.56	104.69	101	104.6	100.91	100.60	-0.95
110	54	108	93.531	-0.1	3.026	110	0.56	109.69	106	109.6	105.91	105.60	-0.95
120	58	116	100.459	0.9	4.181	120	0.56	119.69	116	119.6	115.91	115.60	-0.95
130	64	128	110.851	-0.1	3.026	130	0.56	129.69	126	129.6	125.91	125.60	-0.95
140	68	136	117.779	0.9	4.181	140	0.56	139.69	136	139.6	135.91	135.60	-0.95
150	74	148	128.172	-0.1	3.026	150	0.56	149.69	146	149.6	145.91	145.60	-0.95
