计算选型
|

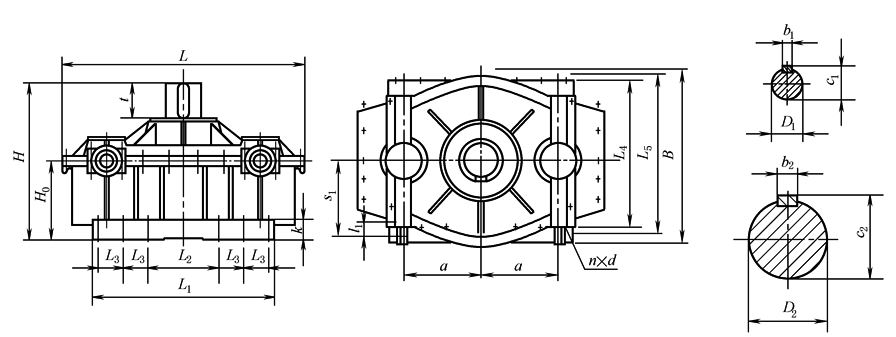

SHZP型减速器外形、安装尺寸 |
|||||||||||||
|
mm |
|||||||||||||
|
规格 |
中心尺寸 |
轮廓尺寸 |
地脚螺栓 |
||||||||||
|
a |
H0 |
L |
B |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
d |
n |
k |
|
|
215 |
215 |
250 |
690 |
430 |
485 |
560 |
280 |
110 |
350 |
400 |
M20 |
8 |
60 |
|
255 |
255 |
280 |
810 |
500 |
555 |
660 |
330 |
130 |
410 |
460 |
M20 |
8 |
65 |
|
300 |
300 |
315 |
960 |
580 |
655 |
770 |
380 |
150 |
470 |
530 |
M24 |
8 |
70 |
|
350 |
350 |
355 |
1100 |
680 |
750 |
870 |
420 |
180 |
570 |
630 |
M24 |
8 |
80 |
|
400 |
400 |
400 |
1280 |
790 |
838 |
990 |
500 |
200 |
670 |
740 |
M24 |
8 |
90 |
|
450 |
450 |
450 |
1440 |
900 |
950 |
1150 |
440 |
150 |
740 |
840 |
M30 |
12 |
120 |
|
500 |
500 |
500 |
1610 |
1000 |
1010 |
1250 |
480 |
160 |
830 |
930 |
M36 |
12 |
120 |
|
550 |
550 |
550 |
1750 |
1110 |
1130 |
1350 |
500 |
180 |
960 |
1070 |
M36 |
12 |
140 |
|
600 |
600 |
600 |
1920 |
1220 |
1200 |
1490 |
540 |
200 |
1020 |
1140 |
M42 |
12 |
160 |
|
670 |
670 |
630 |
2110 |
1340 |
1320 |
1630 |
560 |
230 |
1140 |
1260 |
M42 |
12 |
180 |
|
750 |
750 |
710 |
2350 |
1500 |
1475 |
1840 |
580 |
180 |
1250 |
1410 |
M48 |
16 |
200 |
|
840 |
840 |
800 |
2640 |
1680 |
1590 |
2020 |
640 |
200 |
1430 |
1590 |
M48 |
16 |
220 |
|
950 |
950 |
900 |
2940 |
1900 |
1820 |
2300 |
700 |
230 |
1620 |
1800 |
M56 |
16 |
250 |
|
1070 |
1070 |
1000 |
3230 |
2120 |
1940 |
2550 |
700 |
270 |
1840 |
2820 |
M56 |
16 |
280 |
|
规格 |
高速轴伸i≤137.5 |
高速轴伸i≥144.9 |
低速轴伸 |
质量 /kg |
|||||||||||
|
D1 |
l1 |
c1 |
b1 |
s1 |
D1 |
l1 |
c1 |
b1 |
s1 |
D2 |
t |
c2 |
b2 |
||
|
215 |
28j6 |
42 |
31 |
8 |
340 |
18j6 |
28 |
20.5 |
6 |
320 |
75m6 |
105 |
79.5 |
20 |
270 |
|
255 |
35k6 |
58 |
38 |
10 |
405 |
22j6 |
36 |
24.5 |
6 |
365 |
90m6 |
130 |
95 |
25 |
400 |
|
300 |
42k6 |
82 |
45 |
12 |
450 |
28j6 |
42 |
31 |
8 |
425 |
110m6 |
165 |
116 |
28 |
707 |
|
350 |
48k6 |
82 |
51.5 |
14 |
450 |
35k6 |
58 |
38 |
10 |
405 |
130m6 |
200 |
137 |
32 |
946 |
|
400 |
55m6 |
82 |
59 |
16 |
489 |
42k6 |
82 |
45 |
12 |
466 |
150m6 |
200 |
158 |
36 |
1350 |
|
450 |
60m6 |
105 |
64 |
16 |
508 |
48k6 |
82 |
51.5 |
14 |
485 |
170m6 |
240 |
179 |
45 |
1860 |
|
500 |
70m6 |
105 |
74.9 |
20 |
540 |
55m6 |
82 |
59 |
16 |
517 |
180m6 |
240 |
190 |
45 |
2517 |
|
550 |
75m6 |
105 |
79.5 |
20 |
575 |
60m6 |
105 |
64 |
18 |
575 |
200m6 |
280 |
210 |
45 |
3360 |
|
600 |
80m6 |
130 |
85 |
22 |
680 |
65m6 |
105 |
69 |
18 |
655 |
220m6 |
280 |
231 |
50 |
4580 |
|
670 |
90m6 |
130 |
95 |
25 |
740 |
70m6 |
105 |
74.5 |
20 |
715 |
250m6 |
330 |
262 |
56 |
6105 |
|
750 |
100m6 |
165 |
106 |
28 |
840 |
80m6 |
130 |
85 |
22 |
805 |
280m6 |
380 |
292 |
63 |
8645 |
|
840 |
110m6 |
165 |
116 |
28 |
896 |
90m6 |
130 |
95 |
25 |
861 |
300m6 |
380 |
314 |
70 |
12150 |
|
950 |
130m6 |
200 |
137 |
32 |
1021 |
100m6 |
165 |
116 |
28 |
986 |
340m6 |
450 |
355 |
80 |
17505 |
|
1070 |
150m6 |
200 |
158 |
36 |
1086 |
110m6 |
165 |
116 |
28 |
1051 |
380m6 |
450 |
395 |
80 |
24835 |
