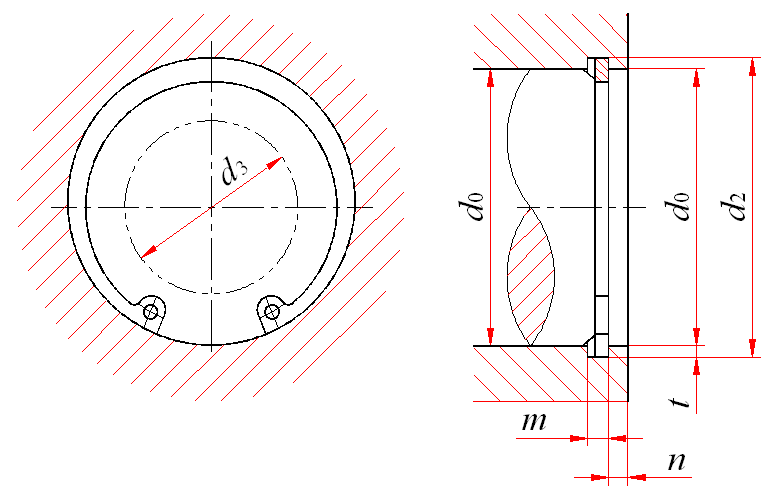

孔用弹性挡圈－A型(GB/T 893.1—1986) mm |
|||||||||||
|
d3——允许套入的最大轴径 |
|||||||||||
|
标记示例： 孔径d0＝50、材料65Mn、热处理硬度HRC44～51、经表面氧化处理的A型孔用弹性挡圈的标记： 挡圈 GB/T 893.1 50 |
|||||||||||
|
孔径 d0 |
挡 圈 |
沟 槽(推荐) |
轴 d3 ≤ |
||||||||
|
D |
S |
d1 |
d2 |
m |
n ≥ |
||||||
|
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
||||
|
8 |
8.7 |
＋0.36 －0.10 |
0.6 |
＋0.04 －0.07 |
1 |
8.4 |
＋0.09 0 |
0.7 |
＋0.14 0 |
0.6 |
2 |
|
9 |
9.8 |
＋0.36 －0.10 |
0.6 |
＋0.04 －0.07 |
1 |
9.4 |
＋0.09 0 |
0.7 |
＋0.14 0 |
0.6 |
2 |
|
10 |
10.8 |
＋0.36 －0.10 |
0.8 |
＋0.04 －0.10 |
1.5 |
10.4 |
＋0.11 0 |
0.9 |
＋0.14 0 |
0.6 |
2 |
|
11 |
11.8 |
＋0.36 －0.10 |
0.8 |
＋0.04 －0.10 |
1.5 |
11.4 |
＋0.11 0 |
0.9 |
＋0.14 0 |
0.6 |
3 |
|
12 |
13 |
＋0.36 －0.10 |
0.8 |
＋0.04 －0.10 |
1.5 |
12.5 |
＋0.11 0 |
0.9 |
＋0.14 0 |
0.9 |
4 |
|
13 |
14.1 |
＋0.36 －0.10 |
0.8 |
＋0.04 －0.10 |
1.7 |
13.6 |
＋0.11 0 |
0.9 |
＋0.14 0 |
0.9 |
4 |
|
14 |
15.1 |
＋0.36 －0.10 |
1 |
＋0.05 －0.13 |
1.7 |
14.6 |
＋0.11 0 |
1.1 |
＋0.14 0 |
0.9 |
5 |
|
15 |
16.2 |
＋0.36 －0.10 |
1 |
＋0.05 －0.13 |
1.7 |
15.7 |
＋0.11 0 |
1.1 |
＋0.14 0 |
1.2 |
6 |
|
16 |
17.3 |
＋0.36 －0.10 |
1 |
＋0.05 －0.13 |
1.7 |
16.8 |
＋0.11 0 |
1.1 |
＋0.14 0 |
1.2 |
7 |
|
17 |
18.3 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
1.7 |
17.8 |
＋0.11 0 |
1.1 |
＋0.14 0 |
1.2 |
8 |
|
18 |
19.5 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
1.7 |
19 |
＋0.13 0 |
1.1 |
＋0.14 0 |
1.5 |
9 |
|
19 |
20.5 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
2 |
20 |
＋0.13 0 |
1.1 |
＋0.14 0 |
1.5 |
10 |
|
20 |
21.5 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
2 |
21 |
＋0.13 0 |
1.1 |
＋0.14 0 |
1.5 |
10 |
|
21 |
22.5 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
2 |
22 |
＋0.13 0 |
1.1 |
＋0.14 0 |
1.5 |
11 |
|
22 |
23.5 |
＋0.42 －0.13 |
1 |
＋0.05 －0.13 |
2 |
23 |
＋0.13 0 |
1.1 |
＋0.14 0 |
1.5 |
12 |
|
24 |
25.9 |
＋0.42 －0.21 |
1.2 |
＋0.05 －0.13 |
2 |
25.2 |
＋0.21 0 |
1.3 |
＋0.14 0 |
1.8 |
13 |
|
25 |
26.9 |
＋0.42 －0.21 |
1.2 |
＋0.05 －0.13 |
2 |
26.2 |
＋0.21 0 |
1.3 |
＋0.14 0 |
1.8 |
14 |
|
26 |
27.9 |
＋0.42 －0.21 |
1.2 |
＋0.05 －0.13 |
2 |
27.2 |
＋0.21 0 |
1.3 |
＋0.14 0 |
1.8 |
15 |
|
28 |
30.1 |
＋0.50 －0.25 |
1.2 |
＋0.05 －0.13 |
2 |
29.4 |
＋0.21 0 |
1.3 |
＋0.14 0 |
2.1 |
17 |
|
30 |
32.1 |
＋0.50 －0.25 |
1.2 |
＋0.05 －0.13 |
2 |
31.4 |
＋0.25 0 |
1.3 |
＋0.14 0 |
2.1 |
18 |
|
31 |
33.4 |
＋0.50 －0.25 |
1.2 |
＋0.05 －0.13 |
2.5 |
32.7 |
＋0.25 0 |
1.3 |
＋0.14 0 |
2.6 |
19 |
|
32 |
34.4 |
＋0.50 －0.25 |
1.2 |
＋0.05 －0.13 |
2.5 |
33.7 |
＋0.25 0 |
1.3 |
＋0.14 0 |
2.6 |
20 |
|
34 |
36.5 |
＋0.50 －0.25 |
1.5 |
＋0.06 －0.15 |
2.5 |
35.7 |
＋0.25 0 |
1.7 |
＋0.14 0 |
2.6 |
22 |
|
35 |
37.8 |
＋0.50 －0.25 |
1.5 |
＋0.06 －0.15 |
2.5 |
37 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3 |
23 |
|
36 |
38.8 |
＋0.50 －0.25 |
1.5 |
＋0.06 －0.15 |
2.5 |
38 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3 |
24 |
|
37 |
39.8 |
＋0.50 －0.25 |
1.5 |
＋0.06 －0.15 |
2.5 |
39 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3 |
25 |
|
38 |
40.8 |
＋0.50 －0.25 |
1.5 |
＋0.06 －0.15 |
2.5 |
40 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3 |
26 |
|
40 |
43.5 |
＋0.90 －0.39 |
1.5 |
＋0.06 －0.15 |
2.5 |
42.5 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3.8 |
27 |
|
42 |
45.5 |
＋0.90 －0.39 |
1.5 |
＋0.06 －0.15 |
3 |
44.5 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3.8 |
29 |
|
45 |
48.5 |
＋0.90 －0.39 |
1.5 |
＋0.06 －0.15 |
3 |
47.5 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3.8 |
31 |
|
47 |
50.5 |
＋1.10 －0.46 |
1.5 |
＋0.06 －0.15 |
3 |
49.5 |
＋0.25 0 |
1.7 |
＋0.14 0 |
3.8 |
32 |
|
48 |
51.5 |
＋1.10 －0.46 |
1.5 |
＋0.06 －0.15 |
3 |
50.5 |
＋0.30 0 |
1.7 |
＋0.14 0 |
3.8 |
33 |
|
50 |
54.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
53 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
36 |
|
52 |
56.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
55 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
38 |
|
55 |
59.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
58 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
40 |
|
56 |
60.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
59 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
41 |
|
58 |
62.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
61 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
43 |
|
60 |
64.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
63 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
44 |
|
62 |
66.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
65 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
45 |
|
63 |
67.2 |
＋1.10 －0.46 |
2 |
＋0.06 －0.18 |
3 |
66 |
＋0.30 0 |
2.2 |
＋0.14 0 |
4.5 |
46 |
|
65 |
69.2 |
＋1.10 －0.46 |
2.5 |
＋0.07 －0.22 |
3 |
68 |
＋0.30 0 |
2.7 |
＋0.14 0 |
4.5 |
48 |
|
68 |
72.5 |
＋1.10 －0.46 |
2.5 |
＋0.07 －0.22 |
3 |
71 |
＋0.30 0 |
2.7 |
＋0.14 0 |
4.5 |
50 |
|
70 |
74.5 |
＋1.10 －0.46 |
2.5 |
＋0.07 －0.22 |
3 |
73 |
＋0.30 0 |
2.7 |
＋0.14 0 |
4.5 |
53 |
|
72 |
76.5 |
＋1.10 －0.46 |
2.5 |
＋0.07 －0.22 |
3 |
75 |
＋0.30 0 |
2.7 |
＋0.14 0 |
4.5 |
55 |
|
75 |
79.5 |
＋1.10 －0.46 |
2.5 |
＋0.07 －0.22 |
3 |
78 |
＋0.30 0 |
2.7 |
＋0.14 0 |
4.5 |
56 |
|
78 |
82.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
81 |
＋0.35 0 |
2.7 |
＋0.14 0 |
4.5 |
60 |
|
80 |
85.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
83.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
63 |
|
82 |
87.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
85.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
65 |
|
85 |
90.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
88.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
68 |
|
88 |
93.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
91.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
70 |
|
90 |
95.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
93.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
72 |
|
92 |
97.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
95.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
73 |
|
95 |
100.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
98.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
75 |
|
98 |
103.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
101.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
78 |
|
100 |
105.5 |
＋1.30 －0.54 |
2.5 |
＋0.07 －0.22 |
3 |
103.5 |
＋0.35 0 |
2.7 |
＋0.14 0 |
5.3 |
80 |
|
102 |
108 |
＋1.30 －0.54 |
3 |
＋0.07 －0.22 |
4 |
106 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
82 |
|
105 |
112 |
＋1.30 －0.54 |
3 |
＋0.07 －0.22 |
4 |
109 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
83 |
|
108 |
115 |
＋1.30 －0.54 |
3 |
＋0.07 －0.22 |
4 |
112 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
86 |
|
110 |
117 |
＋1.30 －0.54 |
3 |
＋0.07 －0.22 |
4 |
114 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
88 |
|
112 |
119 |
＋1.30 －0.54 |
3 |
＋0.07 －0.22 |
4 |
116 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
89 |
|
115 |
122 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
119 |
＋0.54 0 |
3.2 |
＋0.18 0 |
6 |
90 |
|
120 |
127 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
124 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
95 |
|
125 |
132 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
129 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
100 |
|
130 |
137 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
134 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
105 |
|
135 |
142 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
139 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
110 |
|
140 |
147 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
144 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
115 |
|
145 |
152 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
149 |
＋0.63 0 |
3.2 |
＋0.18 0 |
6 |
118 |
|
150 |
158 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
155 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
121 |
|
155 |
164 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
160 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
125 |
|
160 |
169 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
165 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
130 |
|
165 |
174.5 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
170 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
136 |
|
170 |
179.5 |
＋1.50 －0.63 |
3 |
＋0.07 －0.22 |
4 |
175 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
140 |
|
175 |
184.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
180 |
＋0.63 0 |
3.2 |
＋0.18 0 |
7.5 |
142 |
|
180 |
189.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
185 |
＋0.72 0 |
3.2 |
＋0.18 0 |
7.5 |
145 |
|
185 |
194.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
190 |
＋0.72 0 |
3.2 |
＋0.18 0 |
7.5 |
150 |
|
190 |
199.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
195 |
＋0.72 0 |
3.2 |
＋0.18 0 |
7.5 |
155 |
|
195 |
204.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
200 |
＋0.72 0 |
3.2 |
＋0.18 0 |
7.5 |
157 |
|
200 |
209.5 |
＋1.70 －0.72 |
3 |
＋0.07 －0.22 |
4 |
205 |
＋0.72 0 |
3.2 |
＋0.18 0 |
7.5 |
165 |
|
质量 kg |
||||||||||
|
孔径/mm |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
|
每1000件钢制品的质量 ≈ |
0.09 |
0.10 |
0.23 |
0.26 |
0.28 |
0.31 |
0.50 |
0.54 |
0.57 |
0.61 |
|
孔径/mm |
18 |
19 |
20 |
21 |
22 |
24 |
25 |
26 |
28 |
30 |
|
每1000件钢制品的质量 ≈ |
0.64 |
0.80 |
0.84 |
0.88 |
0.92 |
1.21 |
1.39 |
1.45 |
1.63 |
1.90 |
|
孔径/mm |
31 |
32 |
34 |
35 |
36 |
37 |
38 |
40 |
42 |
45 |
|
每1000件钢制品的质量 ≈ |
1.97 |
2.02 |
3.04 |
3.13 |
3.22 |
3.31 |
3.39 |
4.13 |
4.33 |
5.24 |
|
孔径/mm |
47 |
48 |
50 |
52 |
55 |
56 |
58 |
60 |
62 |
63 |
|
每1000件钢制品的质量 ≈ |
5.47 |
5.56 |
7.40 |
7.68 |
8.49 |
9.67 |
10.28 |
10.62 |
10.97 |
11.48 |
|
孔径/mm |
65 |
68 |
70 |
72 |
75 |
78 |
80 |
82 |
85 |
88 |
|
每1000件钢制品的质量 ≈ |
14.63 |
16.89 |
17.37 |
17.84 |
20.20 |
20.84 |
23.34 |
24.32 |
25.18 |
27.82 |
|
孔径/mm |
90 |
92 |
95 |
98 |
100 |
102 |
105 |
108 |
110 |
112 |
|
每1000件钢制品的质量 ≈ |
28.70 |
30.64 |
31.89 |
33.15 |
34.09 |
43.38 |
45.82 |
50.09 |
50.99 |
54.61 |
|
孔径/mm |
115 |
120 |
125 |
130 |
135 |
140 |
145 |
150 |
155 |
160 |
|
每1000件钢制品的质量 ≈ |
56.43 |
58.77 |
65.48 |
72.53 |
75.30 |
78.06 |
83.13 |
88.67 |
94.93 |
97.92 |
|
孔径/mm |
165 |
170 |
175 |
180 |
185 |
190 |
195 |
200 |
|
|
|
每1000件钢制品的质量 ≈ |
103.4 |
110.7 |
116.9 |
121.6 |
124.2 |
129.5 |
133.6 |
138.3 |
|
|
