计算选型
|

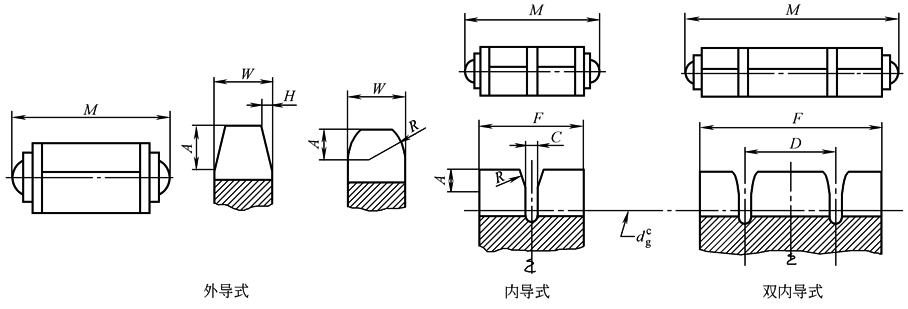

节距p≥9.52mm链条的链宽和链轮齿廓尺寸 mm |
||||||||||
|
|
||||||||||
|
链号 |
链条节距 p |
类型 |
M max |
A |
C ±0.13 |
D ±0.25 |
F
|
H ±0.08 |
R ±0.08 |
W
|
|
SC302 |
9.525 |
外导 |
15.09 |
3.38 |
— |
— |
— |
1.30 |
5.08 |
10.41 |
|
SC303 |
9.525 |
内导 |
21.44 |
3.38 |
2.54 |
— |
19.05 |
— |
5.08 |
— |
|
SC304 |
9.525 |
27.79 |
3.38 |
2.54 |
— |
25.40 |
— |
5.08 |
— |
|
|
SC305 |
9.525 |
34.14 |
3.38 |
2.54 |
— |
31.75 |
— |
5.08 |
— |
|
|
SC306 |
9.525 |
40.49 |
3.38 |
2.54 |
— |
38.10 |
— |
5.08 |
— |
|
|
SC307 |
9.525 |
46.84 |
3.38 |
2.54 |
— |
44.45 |
— |
5.08 |
— |
|
|
SC308 |
9.525 |
53.19 |
3.38 |
2.54 |
— |
50.80 |
— |
5.08 |
— |
|
|
SC309 |
9.525 |
59.54 |
3.38 |
2.54 |
— |
57.15 |
— |
5.08 |
— |
|
|
SC310 |
9.525 |
65.89 |
3.38 |
2.54 |
— |
63.50 |
— |
5.08 |
— |
|
|
SC312 |
9.525 |
双内导 |
78.59 |
3.38 |
2.54 |
25.40 |
76.20 |
— |
5.08 |
— |
|
SC316 |
9.525 |
103.99 |
3.38 |
2.54 |
25.40 |
101.60 |
— |
5.08 |
— |
|
|
SC320 |
9.525 |
129.39 |
3.38 |
2.54 |
25.40 |
127.00 |
— |
5.08 |
— |
|
|
SC324 |
9.525 |
154.79 |
3.38 |
2.54 |
25.40 |
152.40 |
— |
5.08 |
— |
|
|
SC402 |
12.70 |
外导 |
19.05 |
3.33 |
— |
— |
— |
1.30 |
5.08 |
10.41 |
|
SC403 |
12.70 |
内导 |
22.22 |
3.38 |
2.54 |
— |
19.05 |
— |
5.08 |
— |
|
SC404 |
12.70 |
28.58 |
3.38 |
2.54 |
— |
25.40 |
— |
5.08 |
— |
|
|
SC405 |
12.70 |
34.92 |
3.38 |
2.54 |
— |
31.75 |
— |
5.08 |
— |
|
|
SC406 |
12.70 |
41.28 |
3.38 |
2.54 |
— |
38.10 |
— |
5.08 |
— |
|
|
SC407 |
12.70 |
47.62 |
3.38 |
2.54 |
— |
44.45 |
— |
5.08 |
— |
|
|
SC408 |
12.70 |
53.98 |
3.38 |
2.54 |
— |
50.80 |
— |
5.08 |
— |
|
|
SC409 |
12.70 |
60.32 |
3.38 |
2.54 |
— |
57.15 |
— |
5.08 |
— |
|
|
SC410 |
12.70 |
66.68 |
3.38 |
2.54 |
— |
63.50 |
— |
5.08 |
— |
|
|
SC411 |
12.70 |
73.02 |
3.38 |
2.54 |
— |
69.85 |
— |
5.08 |
— |
|
|
SC412 |
12.70 |
79.38 |
3.38 |
2.54 |
— |
76.20 |
— |
5.08 |
— |
|
|
SC414 |
12.70 |
92.08 |
3.38 |
2.54 |
— |
88.90 |
— |
5.08 |
— |
|
|
SC416 |
12.70 |
双内导 |
104.78 |
3.38 |
2.54 |
25.40 |
101.60 |
— |
5.08 |
— |
|
SC420 |
12.70 |
130.18 |
3.38 |
2.54 |
25.40 |
127.00 |
— |
5.08 |
— |
|
|
SC424 |
12.70 |
155.58 |
3.38 |
2.54 |
25.40 |
152.40 |
— |
5.08 |
— |
|
|
SC432 |
12.70 |
206.38 |
3.38 |
2.54 |
25.40 |
203.20 |
— |
5.08 |
— |
|
|
SC504 |
15.875 |
内导 |
29.36 |
4.50 |
3.18 |
— |
25.40 |
— |
6.35 |
— |
|
SC505 |
15.875 |
35.71 |
4.50 |
3.18 |
— |
31.75 |
— |
6.35 |
— |
|
|
SC506 |
15.875 |
42.06 |
4.50 |
3.18 |
— |
38.10 |
— |
6.35 |
— |
|
|
SC507 |
15.875 |
48.41 |
4.50 |
3.18 |
— |
44.45 |
— |
6.35 |
— |
|
|
SC508 |
15.875 |
54.76 |
4.50 |
3.18 |
— |
50.80 |
— |
6.35 |
— |
|
|
SC510 |
15.875 |
67.46 |
4.50 |
3.18 |
— |
63.50 |
— |
6.35 |
— |
|
|
SC512 |
15.875 |
80.16 |
4.50 |
3.18 |
— |
76.20 |
— |
6.35 |
— |
|
|
SC516 |
15.875 |
105.56 |
4.50 |
3.18 |
— |
101.60 |
— |
6.35 |
— |
|
|
SC520 |
15.875 |
双内导 |
130.96 |
4.50 |
3.18 |
50.80 |
127.00 |
— |
6.35 |
— |
|
SC524 |
15.875 |
156.36 |
4.50 |
3.18 |
50.80 |
152.40 |
— |
6.35 |
— |
|
|
SC528 |
15.875 |
181.76 |
4.50 |
3.18 |
50.80 |
177.80 |
— |
6.35 |
— |
|
|
SC532 |
15.875 |
207.16 |
4.50 |
3.18 |
50.80 |
203.20 |
— |
6.35 |
— |
|
|
SC540 |
15.875 |
257.96 |
4.50 |
3.18 |
50.80 |
254.00 |
— |
6.35 |
— |
|
|
SC604 |
19.05 |
内导 |
30.15 |
6.96 |
4.57 |
— |
25.40 |
— |
9.14 |
— |
|
SC605 |
19.05 |
36.50 |
6.96 |
4.57 |
— |
31.75 |
— |
9.14 |
— |
|
|
SC606 |
19.05 |
42.85 |
6.96 |
4.57 |
— |
38.10 |
— |
9.14 |
— |
|
|
SC608 |
19.05 |
55.55 |
6.96 |
4.57 |
— |
50.80 |
— |
9.14 |
— |
|
|
SC610 |
19.05 |
68.25 |
6.96 |
4.57 |
— |
63.50 |
— |
9.14 |
— |
|
|
SC612 |
19.05 |
80.95 |
6.96 |
4.57 |
— |
76.20 |
— |
9.14 |
— |
|
|
SC614 |
19.05 |
93.65 |
6.96 |
4.57 |
— |
88.90 |
— |
9.14 |
— |
|
|
SC616 |
19.05 |
106.35 |
6.96 |
4.57 |
— |
101.60 |
— |
9.14 |
— |
|
|
SC620 |
19.05 |
131.75 |
6.96 |
4.57 |
— |
127.00 |
— |
9.14 |
— |
|
|
SC624 |
19.05 |
157.15 |
6.96 |
4.57 |
— |
152.40 |
— |
9.14 |
— |
|
|
SC628 |
19.05 |
双内导 |
182.55 |
6.96 |
4.57 |
101.60 |
177.80 |
— |
9.14 |
— |
|
SC632 |
19.05 |
207.95 |
6.96 |
4.57 |
101.60 |
203.20 |
— |
9.14 |
— |
|
|
SC636 |
19.05 |
233.35 |
6.96 |
4.57 |
101.60 |
228.60 |
— |
9.14 |
— |
|
|
SC640 |
19.05 |
258.75 |
6.96 |
4.57 |
101.60 |
254.00 |
— |
9.14 |
— |
|
|
SC648 |
19.05 |
309.55 |
6.96 |
4.57 |
101.60 |
304.80 |
— |
9.14 |
— |
|
|
SC808 |
25.40 |
内导 |
57.15 |
6.96 |
4.57 |
— |
50.80 |
— |
9.14 |
— |
|
SC810 |
25.40 |
69.85 |
6.96 |
4.57 |
— |
63.50 |
— |
9.14 |
— |
|
|
SC812 |
25.40 |
82.55 |
6.96 |
4.57 |
— |
76.20 |
— |
9.14 |
— |
|
|
SC816 |
25.40 |
107.95 |
6.96 |
4.57 |
— |
101.60 |
— |
9.14 |
— |
|
|
SC820 |
25.40 |
133.35 |
6.96 |
4.57 |
— |
127.00 |
— |
9.14 |
— |
|
|
SC824 |
25.40 |
158.75 |
6.96 |
4.57 |
— |
152.40 |
— |
9.14 |
— |
|
|
SC828 |
25.40 |
双内导 |
184.15 |
6.96 |
4.57 |
101.60 |
177.80 |
— |
9.14 |
— |
|
SC832 |
25.40 |
209.55 |
6.96 |
4.57 |
101.60 |
203.20 |
— |
9.14 |
— |
|
|
SC836 |
25.40 |
234.95 |
6.96 |
4.57 |
101.60 |
228.60 |
— |
9.14 |
— |
|
|
SC840 |
25.40 |
260.35 |
6.96 |
4.57 |
101.60 |
254.00 |
— |
9.14 |
— |
|
|
SC848 |
25.40 |
311.15 |
6.96 |
4.57 |
101.60 |
304.80 |
— |
9.14 |
— |
|
|
SC856 |
25.40 |
361.95 |
6.96 |
4.57 |
101.60 |
355.60 |
— |
9.14 |
— |
|
|
SC864 |
25.40 |
412.75 |
6.96 |
4.57 |
101.60 |
406.40 |
— |
9.14 |
— |
|
|
SC1010 |
31.75 |
内导 |
71.42 |
6.96 |
4.57 |
— |
63.50 |
— |
9.14 |
— |
|
SC1012 |
31.75 |
84.12 |
6.96 |
4.57 |
— |
76.20 |
— |
9.14 |
— |
|
|
SC1016 |
31.75 |
109.52 |
6.96 |
4.57 |
— |
101.60 |
— |
9.14 |
— |
|
|
SC1020 |
31.75 |
134.92 |
6.96 |
4.57 |
— |
127.00 |
— |
9.14 |
— |
|
|
SC1024 |
31.75 |
160.32 |
6.96 |
4.57 |
— |
152.40 |
— |
9.14 |
— |
|
|
SC1028 |
31.75 |
185.72 |
6.96 |
4.57 |
— |
177.80 |
— |
9.14 |
— |
|
|
SC1032 |
31.75 |
双内导 |
211.12 |
6.96 |
4.57 |
101.60 |
203.20 |
— |
9.14 |
— |
|
SC1036 |
31.75 |
236.52 |
6.96 |
4.57 |
101.60 |
228.60 |
— |
9.14 |
— |
|
|
SC1040 |
31.75 |
261.92 |
6.96 |
4.57 |
101.60 |
254.00 |
— |
9.14 |
— |
|
|
SC1048 |
31.75 |
312.72 |
6.96 |
4.57 |
101.60 |
304.80 |
— |
9.14 |
— |
|
|
SC1056 |
31.75 |
363.52 |
6.96 |
4.57 |
101.60 |
355.60 |
— |
9.14 |
— |
|
|
SC1064 |
31.75 |
414.32 |
6.96 |
4.57 |
101.60 |
406.40 |
— |
9.14 |
— |
|
|
SC1072 |
31.75 |
465.12 |
6.96 |
4.57 |
101.60 |
457.20 |
— |
9.14 |
— |
|
|
SC1080 |
31.75 |
515.92 |
6.96 |
4.57 |
101.60 |
508.00 |
— |
9.14 |
— |
|
|
SC1212 |
38.10 |
内导 |
85.72 |
6.96 |
4.57 |
— |
76.20 |
— |
9.14 |
— |
|
SC1216 |
38.10 |
111.12 |
6.96 |
4.57 |
— |
101.60 |
— |
9.14 |
— |
|
|
SC1220 |
38.10 |
136.52 |
6.96 |
4.57 |
— |
127.00 |
— |
9.14 |
— |
|
|
SC1224 |
38.10 |
161.92 |
6.96 |
4.57 |
— |
152.40 |
— |
9.14 |
— |
|
|
SC1228 |
38.10 |
187.32 |
6.96 |
4.57 |
— |
177.80 |
— |
9.14 |
— |
|
|
SC1232 |
38.10 |
双内导 |
212.72 |
6.96 |
4.57 |
101.60 |
203.20 |
— |
9.14 |
— |
|
SC1236 |
38.10 |
238.12 |
6.96 |
4.57 |
101.60 |
228.60 |
— |
9.14 |
— |
|
|
SC1240 |
38.10 |
263.52 |
6.96 |
4.57 |
101.60 |
254.00 |
— |
9.14 |
— |
|
|
SC1248 |
38.10 |
314.32 |
6.96 |
4.57 |
101.60 |
304.80 |
— |
9.14 |
— |
|
|
SC1256 |
38.10 |
365.12 |
6.96 |
4.57 |
101.60 |
355.60 |
— |
9.14 |
— |
|
|
SC1264 |
38.10 |
415.92 |
6.96 |
4.57 |
101.60 |
406.40 |
— |
9.14 |
— |
|
|
SC1272 |
38.10 |
466.72 |
6.96 |
4.57 |
101.60 |
457.20 |
— |
9.14 |
— |
|
|
SC1280 |
38.10 |
517.52 |
6.96 |
4.57 |
101.60 |
508.00 |
— |
9.14 |
— |
|
|
SC1288 |
38.10 |
568.32 |
6.96 |
4.57 |
101.60 |
558.80 |
— |
9.14 |
— |
|
|
SC1296 |
38.10 |
619.12 |
6.96 |
4.57 |
101.60 |
609.60 |
— |
9.14 |
— |
|
|
SC1616 |
50.80 |
内导 |
114.30 |
6.96 |
5.54 |
— |
101.60 |
— |
9.14 |
— |
|
SC1620 |
50.80 |
139.70 |
6.96 |
5.54 |
— |
127.00 |
— |
9.14 |
— |
|
|
SC1624 |
50.80 |
165.10 |
6.96 |
5.54 |
— |
152.40 |
— |
9.14 |
— |
|
|
SC1628 |
50.80 |
190.50 |
6.96 |
5.54 |
— |
177.80 |
— |
9.14 |
— |
|
|
SC1632 |
50.80 |
双内导 |
215.90 |
6.96 |
5.54 |
101.60 |
203.20 |
— |
9.14 |
— |
|
SC1640 |
50.80 |
266.70 |
6.96 |
5.54 |
101.60 |
254.00 |
— |
9.14 |
— |
|
|
SC1648 |
50.80 |
317.50 |
6.96 |
5.54 |
101.60 |
304.80 |
— |
9.14 |
— |
|
|
SC1656 |
50.80 |
双内导 |
368.30 |
6.96 |
5.54 |
101.60 |
355.60 |
— |
9.14 |
— |
|
SC1664 |
50.80 |
419.10 |
6.96 |
5.54 |
101.60 |
406.40 |
— |
9.14 |
— |
|
|
SC1672 |
50.80 |
469.90 |
6.96 |
5.54 |
101.60 |
457.20 |
— |
9.14 |
— |
|
|
SC1680 |
50.80 |
520.70 |
6.96 |
5.54 |
101.60 |
508.00 |
— |
9.14 |
— |
|
|
SC1688 |
50.80 |
571.50 |
6.96 |
5.54 |
101.60 |
558.80 |
— |
9.14 |
— |
|
|
SC1696 |
50.80 |
571.50 |
6.96 |
5.54 |
101.60 |
609.60 |
— |
9.14 |
— |
|
|
SC16120 |
50.80 |
571.50 |
6.96 |
5.54 |
101.60 |
762.00 |
— |
9.14 |
— |
|
|
注：1.链号由字母SC与表示链条节距和链条公称宽度的数字组成。节距p≥9.52mm的链条链号数字的前一位或前二位乘以3.175mm(1/8in)为链条的节距值，最后二位或三位数乘以6.35mm(1/4in)为齿形链的公称宽度。 2.M为链条最大宽度。 3.外导式链条的导板与齿链板的厚度相同。 4.切槽刀的端头可以是圆弧形或矩形，dg值见表节距p＝1mm链轮的数表。 |
||||||||||
