计算选型
|

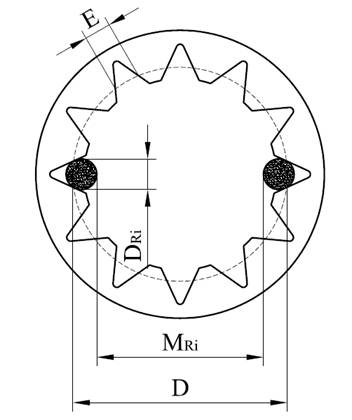

内花键量规(DIN 5481：2005-06) |
|||||||||
|
|
|||||||||
|
规格 |
齿数 |
内花键 齿槽角 |
节圆 直径 |
实际齿槽宽 |
作用 齿槽宽 |
棒间距 |
量棒 直径 |
||
|
|
Z |
γi |
D |
Emax |
Emin |
Ev |
MRi max |
MRi min |
DRi |
|
mm |
— |
° |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
7×8 |
28 |
47.143 |
7.5 |
0.4526 |
0.4327 |
0.4207 |
6.9303 |
6.8859 |
0.455 |
|
8×10 |
28 |
47.143 |
9 |
0.5377 |
0.5169 |
0.5050 |
8.0452 |
7.9988 |
0.620 |
|
10×12 |
30 |
48.000 |
11 |
0.6098 |
0.5888 |
0.5760 |
9.8446 |
9.7986 |
0.725 |
|
12×14 |
31 |
48.387 |
13 |
0.6949 |
0.6722 |
0.6587 |
11.9310 |
11.8786 |
0.750 |
|
15×17 |
32 |
48.750 |
16 |
0.8239 |
0.7995 |
0.7854 |
14.7328 |
14.6802 |
0.895 |
|
17×20 |
33 |
49.091 |
18.5 |
0.9219 |
0.8960 |
0.8806 |
17.0672 |
17.0119 |
1.000 |
|
21×24 |
34 |
49.412 |
22 |
1.0604 |
1.0329 |
1.0164 |
20.0376 |
19.9761 |
1.250 |
|
26×30 |
35 |
49.714 |
28 |
1.3060 |
1.2751 |
1.2566 |
25.6918 |
25.6266 |
1.500 |
|
30×34 |
36 |
50.000 |
32 |
1.4483 |
1.4158 |
1.3963 |
30.0228 |
29.9546 |
1.500 |
|
36×40 |
37 |
50.270 |
38 |
1.6707 |
1.6347 |
1.6132 |
35.6193 |
35.5443 |
1.750 |
|
40×44 |
38 |
50.526 |
42 |
1.7964 |
1.7587 |
1.7361 |
39.0808 |
39.0026 |
2.000 |
|
45×50 |
39 |
50.769 |
47.5 |
1.9791 |
1.9381 |
1.9131 |
44.0923 |
44.0077 |
2.250 |
|
50×55 |
40 |
51.000 |
52.5 |
2.1328 |
2.0886 |
2.0617 |
48.6199 |
48.5291 |
2.500 |
|
55×60 |
42 |
51.429 |
57.5 |
2.2245 |
2.1783 |
2.1505 |
52.9869 |
52.8928 |
2.750 |
